Tuesday, May 25, 2010

Performance comparison - Functions versus Joins



User defined Scalar function is often chosen as a easier alternative for joining two or multiple tables while writing queries by developers. Other reason given by 'Few' developers is that its provides better readability on a long query. Both are bad reasons for using functions as scalar functions when used inappropriately can potentially kill the performance.

Scalar function when used on a query is executed for every row of the result set, just like a cursor would do. Row by Row processing is very very expensive when compared to SET based processing provided by joins. Scalar functions also makes indexes on the joined tables less effective or even useless.Above factors make joins, in general, a better option when they can replace a scalar function.

We will see the same with an example.

Consider the following tables student , student_marks . Student table contains student details and student_marks contain marks obtained by students on 5 subjects. Table definition and random data population scripts are provided below.


/***********************************************/
/************* Table [dbo].[student_marks]******/
CREATE TABLE [dbo].[student_marks]
  (
     [sid]          [INT] NOT NULL,
     [marks]        [INT] NULL,
     [subject_name] [VARCHAR](50) NOT NULL,
     [subject_id]   [INT] NOT NULL,
     CONSTRAINT [PK_student_marks] PRIMARY KEY CLUSTERED ( [sid] ASC,
     [subject_id] ASC )
  )
ON [PRIMARY]
GO

/****** Table [dbo].[Student] ******/
CREATE TABLE [dbo].[Student]
  (
     [sid]          [INT] NOT NULL,
     [student_name] [VARCHAR](50) NULL,
     CONSTRAINT [PK_Student] PRIMARY KEY CLUSTERED ( [sid] ASC )
  )
ON [PRIMARY]
GO

Random data population scripts

/*************Student table data population*********/
DECLARE @id INT
SET @id = 0
WHILE @id <= 100000
  BEGIN
      INSERT INTO student
      SELECT @id,
             CHAR(( @id % 26 ) + 65) + '-' + CONVERT(VARCHAR, @id)

      SET @id = @id + 1
  END
GO

/*************Student_marks table population**********************/
INSERT INTO student_marks
SELECT sid,
       Round(Abs(( Rand(sid + x.subid) * 1000000000000 ) - Round((
                       ( Rand(sid + x.subid) *
                         1000000000000 ) / 100 ), 0) * 100), 0),
       x.subject,
       x.subid
FROM   student,
       (SELECT 'math' AS subject,
               1      AS subid
        UNION
        SELECT 'physics',
               2
        UNION
        SELECT 'chemistry',
               3
        UNION
        SELECT 'computer_science',
               4
        UNION
        SELECT 'tamil',
               5) AS x


The Scripts provided would insert 100,001 rows in student table and 500,005 rows student marks table.Primary key clustered index has been created on sid column on student table and sid,subject_id columns on student_marks table.

Assume that the requirement is to provide the student names and marks of all students in the school.Solution using scalar function would involve creating a function to get student name from student table and querying the student_marks table for obtaining rest of the details. Simple function definition would look like


/****** Object:  UserDefinedFunction [dbo].[student_name]    ******/
SET ansi_nulls ON
GO

SET quoted_identifier ON
GO

CREATE FUNCTION [dbo].[Student_name](@sid INT)
RETURNS VARCHAR(50)
AS
  BEGIN
      DECLARE @student_name VARCHAR(50)

      SELECT @student_name = student_name
      FROM   student
      WHERE  sid = @sid

      RETURN @student_name
  END


After creating the function, the following query using scalar function is executed.

SET statistics io ON
GO

DECLARE @dt DATETIME
SET @dt = Getdate()
SELECT dbo.Student_name(sid),
       *
FROM   student_marks
WHERE  sid < 20000

SELECT Datediff(ms, @dt, Getdate())

Perfomance Stats are provided below:
Time taken :55640 ms ( 0:56 Seconds)
Rows Returned :100000
IO details : Table Table 'student_marks'. Scan count 1, logical reads 415, physical reads 56, read-ahead reads 412, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

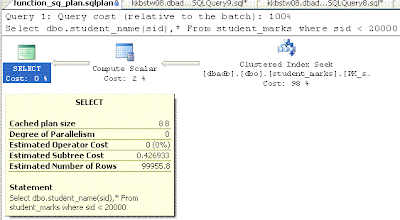

Query plan:


The query plan doesnt show whats exactly happening with in the function/
how many times was the function precisely called.So, to find the same, let me use the DMV dm_exec_query_Stats


SELECT Substring(TEXT, ( statement_start_offset / 2 ) + 1, ( ( CASE
              statement_end_offset
              WHEN -1 THEN Datalength(TEXT)
              ELSE statement_end_offset
                                                               END
       - statement_start_offset ) / 2 ) + 1) AS statement_text,
       Isnull(Object_name(objectid), '-')    AS obj_name,
       execution_count,
       max_elapsed_time,
       max_logical_reads,
       max_logical_writes
FROM   sys.dm_exec_query_stats
       OUTER APPLY sys.Dm_exec_sql_text(plan_handle) AS sqltext
WHERE  TEXT NOT LIKE '%dm_exec_query_Stats%'
ORDER  BY execution_count DESC

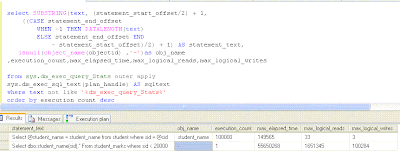

Execution count column on dm_exec_query_stats DMV clearly shows that the query Select dbo.student_name(sid),* From student_marks where sid < 20000 in the function dbo.student_name has been executed 10000 times , which is exactly the same number of rows returned. So its basically passing a number ( sid ) and making the functions' code execute over and over which makes it painfully slow.

Let us Consider the join based solution:

SET statistics io ON

GO
DECLARE @dt DATETIME
SET @dt = Getdate()
SELECT student_name,
       student_marks.*
FROM   student_marks,
       student
WHERE  student_marks.sid = student.sid
       AND student_marks.sid < 20000
SELECT Datediff(ms, @dt, Getdate())


Performance Stats :
Time taken : 2876 ms ( 2.9 Seconds)
Rows Returned: 100,000
IO details : Table 'student_marks'. Scan count 1, logical reads 415, physical reads 3, read-ahead reads 412, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Student'. Scan count 1, logical reads 60, physical reads 1, read-ahead reads 58, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

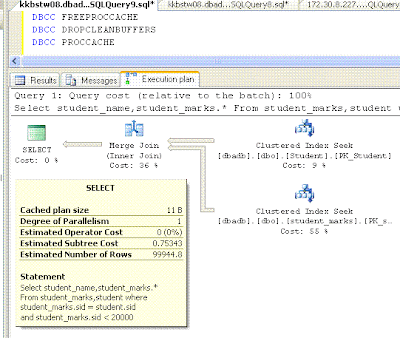

Query plan:


Join based solution completes the query in less than three seconds, which is 20 times faster than Scalar functions. IO also indicates lesser number of reads. The student table is also read only once against 100,000 times as in the case of scalar functions. Query Stats DMV confirm the same.



So the conclusion is, one should always avoid using scalar functions as much as possible and should be used only when we don't have any other option to replace it.Complex string manipulation requirements or date calculation requirements are perhaps, plausible excuses for Scalar functions, but still they have to be used with caution as they have been found as performance bottlenecks more often than not.

Wednesday, May 19, 2010

SQLDiag



When one needs to monitor a servers performance, one has to make use of the Performance monitor to capture the system parameters and obtain the bigger picture, identify the bottleneck and then use profiler utility to identify the queries causing the performance slowdown.

Instead of using multiple tools to gather performance data, SQLDIAG is a single utility which is capable of capturing the following.

* Queries executed and corresponding events.
* Performance counters
* Error logs
* SQL Server blocks and resource usage information.
* SQL Server version and configuration information.


SQLDiag is a command line utility where one can configure the things to be captured in a XML file.SQLDiag is found in the drive in which SQL Executables are installed,with the path '..\Microsoft SQL Server\90\Tools\Binn\' . SQLDiag takes a few input parameters like XML file to be taken as input, place to write the captured results etc. Once started provides the captured results into the specified folder.
Details about useful output files are provided below.

1) SQLDIAG.BLG - Stores the perfmon counters values asked for
2) _sp_trace.trc - Provides the profiler details/query
details
3) ***_sp_SQLDiag_shutdown.OUT- Provides the sqlerrorlog,current
running queries,open transaction,configuration info, blocking query
info taken at the time of stopping SQLDiag.

Sample call is provided below:

START SQLDIAG /I "%cd%\customized.XML" /O "%cd%\SQLDiagOutput" /P

"%cd%" Refers to the current directory. customized.XML is the XML I prepared for capturing data. SQLServer by default ships SQLDIAG.XML which can be used to capture data. SQLDIAG.XML captures a whole lot of data with too many counters and too
many profiler events. Instead, I have created a customized XML which grabs important 15 - 20 counters and queries that are executed against the database. Customized.xml can be downloaded from here. There are very few resources on SQLDiag the
net.Refer here for more details.

SQLDiag's advantages and drawbacks are provided below:

Advantages:

* Single tool to capture all the data required.
* Can be easily reused across servers as its just a single XML file which
contains all the configuration and settings
* Can be run as a Service

Disadvantages :
* Cant be configured from a remote machine. One needs to be logged in to the
actual server.
Stores the data only on the monitored instance.
* Changing XML can be bit tedious and difficult.
* No performance gain when compared to profiler/perfmon. Incurs the same
amount of resouces as other tools.
* Doesnt store data on the database which can make it easier for analysis.
Stores only on trc/text files.

Tuesday, May 11, 2010

Getting the IP Address and port no on SQL Server 2000,SQL Server 2005


This is my 50th Post. Thanks a lot for all the readers for your support.

Now for the actual topic.
Finding the IP address and port number of a SQL Server from a remote client can be tricky especially if you are on SQL Server 2000.I am never a big fan of xp_cmdshell . So I am not using xp_cmdshell 'ipconfig'. The alternative method that works for me is reading the SQL Error log thro sp_readerrorlog . Run the following command

EXEC Sp_readerrorlog
GO


sp_readerrorlog provides an output as shown below.



If you scroll 20 to 25 lines ( varies from server to server ) of output, you should find the text 'SQL Server is listening on IP Address : Port no'. Note that we can also find the port at which SQL Server is listening for connections. By default SQL Server listens for connections at 1433.

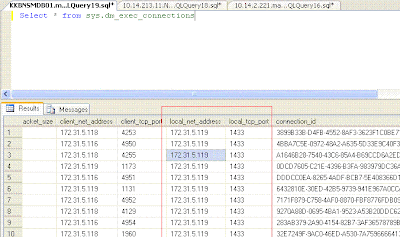

If you are on SQL Server 2005, then you are life is made lot easier using the DMV sys.dm_exec_connections.Execute the following query


SELECT *
FROM   sys.dm_exec_connections



The local_net_address,local_tcp_port columns on the DMV dm_exec_connections provides the IP Address of the SQL Server and the port at which SQL Server listens for connections. Additionally columns Client_net_address,Client_tcp_port indicate the ip addresses that are currently connected to SQL Server and the the source ports from which they are connecting to.

Monday, May 3, 2010

Clustering - few useful documents



This is One of best articles I have read on clustering.
Very complete, and provides info on just about every task we happen to perform
on clustered servers. Must have for a DBA, if any of your servers are clustered.
Download from here. Best part its a white paper provided by Microsoft itself :)

In case, if you want to read on how to install clustered sql server with some simple
screen-shots, you can also refer to embarrassingly simple article written by Brad Mcghee here.

Enjoy.
