Rebuild vs ReOrg

Rebuild or Regorg, difference between Rebuild or Reorg is a fairly common topic on blogs and forums. Here is my take on it.As I am not good on writing tr and td html tags lemme list down the comparison as pointers instead of a tabular column.

Before starting the comparsions, just a small intro on fragmentation. I have written in detail on it over here. But still, a quick intro.
Database Fragmentation is of 2 types. Internal and external fragmentation.

>Internal Fragmentation refers to the fragmentation that happens with in a page.
>External fragmentation is divided to 2 types. Logical and extent fragmentation.
>Logical fragmentation refers to out of order pages within a extent.
>Extent fragmentation refers to out of order extents.

What Reorg does? :

Takes the leaf pages of each index, fixes the internal fragmentation by ensuring that each leaf page is filled as per the fillfactor specified initially while creating the index. Reorg also swaps and rearranges the out of order pages to fix logical fragmentation.

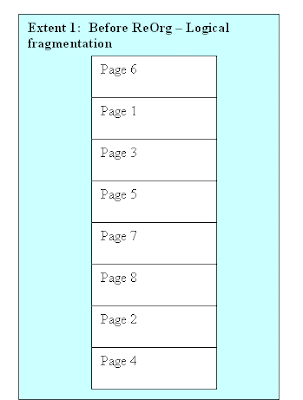

picture of an Sample Extent before Reorg:



picture of Sample Extent after Reorg:



What Rebuild does? :
Rebuild index recreates the index from scratch which means both the leaf and non leaf pages's internal fragmentation is removed.As it rebuilds the index completely it fixes logical fragmentation. Rebuild fixes extent fragmentation most of the
times, but there are a few exceptions.

Let us see the important differences/similarities.

New Page allocation difference - Reorg and Rebuild:
Reorg while fixing internal and logical fragmentation, uses only the existing pages that are allocated to the table.It never allocates new pages and moves around the existing pages to get the internal and logical fragmentation correct.Perhaps thats the reason its called 'Reorg'.

On the other hand Rebuild can allocate new pages, to fix logical and extent fragmentation. Allocating new pages means that Rebuild can sometimes increase the space usage in the data file.

Leaf level pages
As mentioned earlier, Reorg defragments only leaf level pages of a index and Rebuild defrags both leaf and non leaf levels of an index.

Extent fragmentation
Extents are a group of 8 pages, when not present physically in their logical order, is said to be extent fragmented.For ex: page 1-8 of table 1 are present in extent-1.if Pages-9 to 16 of the table, present in extent-2 is not physically stored after extent-1 then the table is said to extent fragmented.

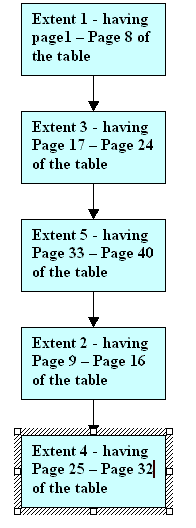

Picture of Sample Extent Fragmented table:

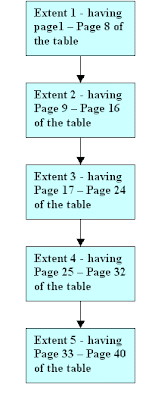

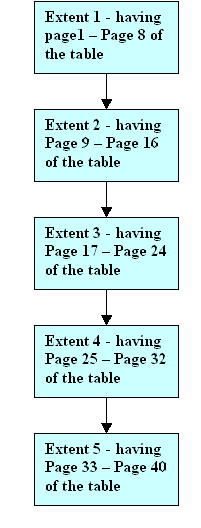

Picture of Extents storage order after Rebuild



Locking - online/offline differences
Reorg is a online process. ie The table remains online during Reorg and updates and Inserts can be done to the table. Reorg takes Indent Exclusive lock at the table level. At page level, it takes exclusive lock only at the page at which is currently working on (swapping/ fixing internal frag ) and leaves the rest of the pages of the table. Once it finishes work on a single page, then it releases the exclusive lock and pulls a exclusive lock the next page it has to work on. If the system is too busy, Reorg sometimes skips the pages.

Rebuild is a offline process and consumes a exclusive lock on the entire table and stops any access to it until the operation finishes.However, Rebuild can be done online using the option ONLINE = ON,if and only if you have a Enterprise edition.

Stats differences
Rebuild of clustered index updates all the statistics assocaited with the table ( both auto and user created ) whereas Reorg doesn't do the same. The STATS_DATE function can be used to check the date at which statistics were last updated.

Log file growths
Both cause the log files to grow. Rebuild can be a minimally logged operation where as REOrg is a fully logged operation.

Stoping / Pausing REOrg
REOrg can be stopped during execution and can continue its execution from it where left.But Rebuild acts like a single transaction and always starts from scratch.

Lob differences
Rebuild of clustered index on a table with LOB column ( varchar(max),varbinary(max),image,xml,text ) fails when performed ONLINE.REOrg of Clustered index compacts LOB objects on the table. REOrg of a non clustered index compacts LOB columns that are part of the included non key columns of the NC Index.

Replacements
Reorg replaces DBCC Indexfrag and Rebuild replaces DBCC DBReindex. The DBCC commands still work on SQL Server 2005, but its recommended to switch to REorg/Rebuild.

Just a note about fragmentation. Fragmentation can hurt your servers performance only when your queries scan the tables instead of Seeking.If your indexes are well selected and accurate, then the queries should use seek operator to fetch the rows and as Seek directly jumps to the row it wants, it doesnt matter how much the table is fragemented or disordered.So, a occasional Reorg or rebuilt should be enough to keep your databases and tables healthy. In general, one perfoms Re0rg when fragmention is around 10 -30 % and rebuild when its greater than 30 %.

Perfmon - useful links

I have couple of useful links on Perfmon.

1) How to correlate Perfmon data with Profiler Data?

Perfmon data gives us the high level picture of what is causing a performance slowdown.Profiler shows what queries exactly running. Correlating both, tells which processes/queries were exactly responsible for a performance slowdown. The article describes neat and clean way provided by Microsoft tools to correlate perfmon and profiler data. Refer here.
for more details. Note that one needs SQL Server 2005 tools to use correlate functionality.

2) How to capture perfmon data directly into table?

Perfmon counter data can be automatically saved to SQL Servers table instead of binary file (blg) or csv file.Saving Perfmon counter into sql server table allows one to check perfmon counter values like CPU, memory, Disk usage % remotely by just using SSMS/ Query analyzer to connect to the server, without actually logging into the server. The above mentioned technique is one method which works in SQL 2000 to check the CPU of monitored instance remotely. Note that the method explained in last post doesn't work for SQL 2k. Refer here for detailed explanation.

The Perfmon data gets captured into two tables namely CounterDetails,CounterData. The details can be viewed using the following query.


SELECT counterdetails.objectname,
       CASE
         WHEN Isnull(instancename, '!@#$') = '!@#$' THEN ''
         ELSE instancename
       END                        AS instance_name,
       counterdetails.countername AS counter_name,
       counterdata.counterdatetime,
       counterdata.countervalue
FROM   counterdata,
       counterdetails
WHERE  counterdetails.counterid = counterdata.counterid
ORDER  BY counterdata.counterdatetime

Finding CPU utilization in SQL Server 2005:

Finding the CPU percentage used by SQL Server is perhaps the first step in performance monitoring. Often, finding the CPU % as shown by task manager, from SQL Server can be tricky as SQL Server's sysprocesses and exec_requests gives only CPU ticks and not the exact CPU % used. Logging into each and every server manually and checking the CPU can be a pain if you are administering a large number of servers. So here is a solution.


DECLARE @ts_now BIGINT

SELECT @ts_now = cpu_ticks / CONVERT(FLOAT, cpu_ticks_in_ms)
FROM sys.dm_os_sys_info

SELECT record_id,
Dateadd(ms, -1 * ( @ts_now - [timestamp] ), Getdate()) AS eventtime,
sqlprocessutilization,
systemidle,
100 - systemidle - sqlprocessutilization AS
otherprocessutilization
FROM (SELECT record.value('(./Record/@id)[1]', 'int')
AS record_id,
record.value('(./Record/SchedulerMonitorEvent/SystemHealth/SystemIdle)[1]',
'int')
AS systemidle,
record.value('(./Record/SchedulerMonitorEvent/SystemHealth/ProcessUtilization)[1]', 'int') AS sqlprocessutilization,
timestamp
FROM (SELECT timestamp,
CONVERT(XML, record) AS record
FROM sys.dm_os_ring_buffers
WHERE ring_buffer_type = N'RING_BUFFER_SCHEDULER_MONITOR'
AND record LIKE '%%') AS x) AS y
ORDER BY record_id DESC

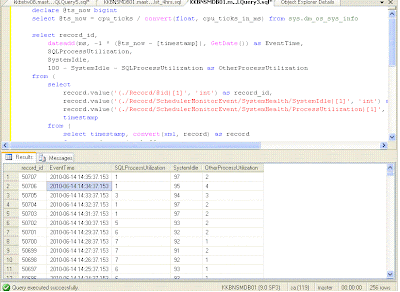

The script provided above provides the approximate CPU usage % as shown in task manager. The result is shown below


Column description is provided below:
SQLProcessutilization: Percentage used by SQL Server process ( sqlserver.exe)
OtherProcessutilization: Percentage used by other processes in the server
Eventtime: Time at which the CPU percentage was recorded.
systemidle: Perecentage of CPU left.
record_id: Just a incremental row id

The CPU percentage is obtained from sys.dm_os_ring_buffers DMV. sys.dm_os_ring_buffers records the CPU percentage
for every one minute and it maintains CPU % for the last 256 minutes. Like all DMVs if the server is restarted then
the DMVs lose the data.

Now for the credits :)

The Script provided above is obtained from the scripts deployed by Performance dashboard tool explained in the last post Performance Dashboard uses the sp [MS_PerfDashboard].[usp_Main_GetCPUHistory] for getting the reports on CPU. I just tweaked the sp to obtain the CPU % for 256 minutes instead of the last 15 minutes returned by Performance Dashboard. Thanks Performance Dashboard again :)

Performance Dashboard - SQL Server 2005 Performance monitoring tool

Performance Dashboard is a simple performance monitoring tool for SQL Server 2005 released by Microsoft which is absolutely FREE :) . Good and detailed explanation is given by Brad McGhee as usual over here. Let me briefly describe the salient features of it.

How to Set up?

* Download Performance dashboard.msi from here

* Install on the machine from which you want to monitor your production servers. The installation completes in seconds in 3-4 clicks and doesn't demand a restart.

* Proceed to C:\Program files\Microsoft SQL Server\90\Tools\PerformanceDashboard folder ( or the folder where you have installed SQL Server. Performance Dashboard is installed on the folder where where you have already installed SQL Server)

* Copy the Setup.sql script and execute it in the production servers to be monitored.

Thats it. You are ready to go.

How to use it?

* Open SSMS on the machine you installed Performance Dashboard.
* Connect to the instance/SQL Server to be monitored on the SSMS
* Right Click on the connect server on the object explorer
and Select Reports .


* Pick Custom Reports
* Select performance_dashboard_main.rdl from C:\Program files\Microsoft SQL Server\90\Tools\PerformanceDashboard
* And then experience the magic :)

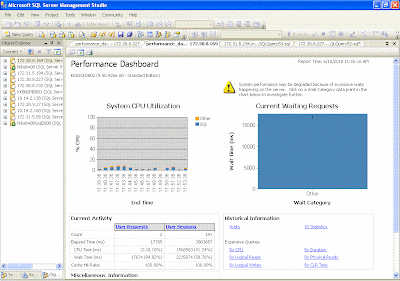

Opening Dashboard Screen shot is provided below.



Why I like it?

* Can check CPU/Buffer cache hit ratio and overall health of Database Servers remotely from SSMS.
* Quickly check the recently ran expensive queries ( as per by IO/CPU/ along with their Query Plan
* Check the Database Size and Log file size, growth, and other paramaters with in a few clicks.
* Provides Missing indexes and suggestions to improve peformance. Also provides number of seeks/scans on the objects.
* Provides DB level IO stats like Reads, Write and their wait times.
* All these brilliant info at almost 0% cost on the monitored server.

Now for few minor cons.

* An alerting feature along with the tool would have been great.
* Also, there are one or two minor bugs for which solutions are already available.
* Ability to add perfmon counters as per our choice would have been even better.
* One cant do a direct copy or paste from the report, has to export to PDF /excel and then copy the required data.

But, am I asking for bit too much on a free tool. Definitely yes :) Inspite of these little cons,Performance Dashboard is a must have for all DBAs, especially if you are monitoring 25+ servers. Just very handy for quickly checking the overall state and health of the server without actually logging into the server. Other than showing larger picture, it helps even to narrow down up to the query level. Simply awesome stuff.

Scalar functions - on where clause

Scalar functions as discussed in the last post can be a performance bottleneck.Another place where Scalar functions ( both user defined and system ) can become a performance bottleneck is when used on a where clause of the query. Scalar functions when used on a where clause of a query can make the optimizer pick a table scan, even if the index is present, making the index useless.

/****** Object:  Index [ncix_Supplier_product_customer_trans_date]   ******/
CREATE NONCLUSTERED INDEX [ncix_Supplier_product_customer_trans_date]
  ON [dbo].[Supplier_Product_Customer] ( [trans_date] ASC )
  ON [PRIMARY]


A non clustered index on trans_date column of supplier_product_customer table has been created.When one needs to find the list of transactions for a particular day ( cutting the time part of the , the most common method of writing the query would be

SELECT *
FROM   [Supplier_Product_customer]
WHERE  Datediff(dd, [trans_date], '11/19/2009') = 0

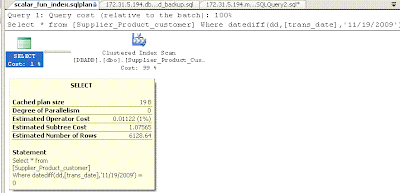

But,the problem with such a query is that it takes table scan instead of using the Non clustered index created on trans_date. The reason is that scalar function datediff used on trans_date column stops the query analyzer from using the index.



A better way of writing it would be

SELECT *
FROM   supplier_product_customer
WHERE  trans_date >= '20091119'
       AND trans_date < '20091120'

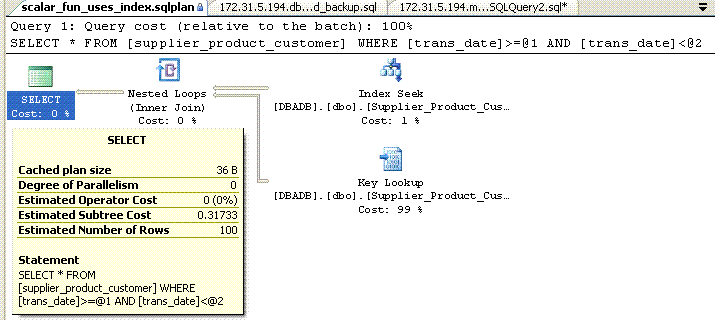

The picture above shows a non clustered index seek instead of table scan. There are few other common scenarios where functions can be avoided. Let me briefly list them here

* Left() string fuction can be effectively replaced by like
'str%'
* Usage of upper/lower string functions can be avoided
when the database has a case insensitive collation.
* isnull(col1,'xyz') = 'xyz' can be replaced by col1 = 'xyz'
or col1 is null
Note that OR conditions do use indexes and but at times they don't.
Please check before use.
* Getting data older than 60/n days query.
Standard way of doing it would be

Where datediff(dd, trans_date, getdate()) > 60

Replaced by

Where trans_date < CONVERT(VARCHAR, getdate()-60, 112)


To Conclude, one should try the best to avoid having scalar functions in where clauses.
